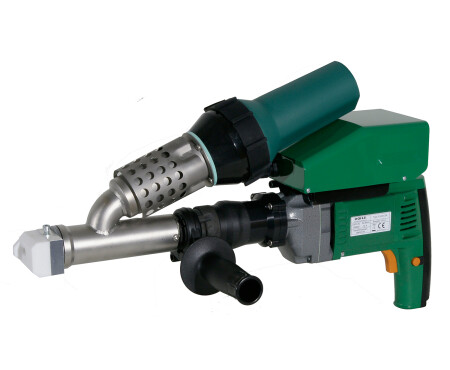

The compact dimensions and the high output of up to 2 kg/h results in an exceptionally flexible extruder that can be used in many areas.
- air heated
- 360° rotation of the welding shoe possible
- 2x welding shoes included with order
- optionally for 3 and 4mm or 4 and 5mm wire
- Large range of accessoires available
Technical data
| Voltage | V | 230 |
| Power consumption | W | 3100 |
| Frequency | Hz | 50/60 |
| Output | kg/h | max. 2 |
| Welding consumable | 4 or 5 round | |
| Dimensions (l x w x h) | mm | 560 x 120 x 350 |
| Pre-heater | brush | |
| Welding materials | PE, PP | |
| Weight | kg | 7 |
| Protection class I | ||
| CE |
