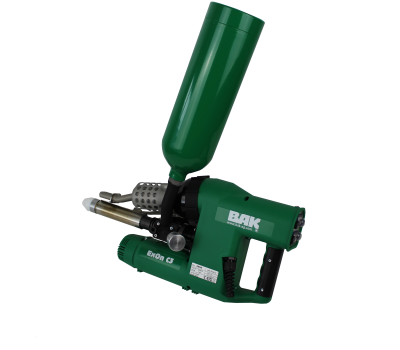

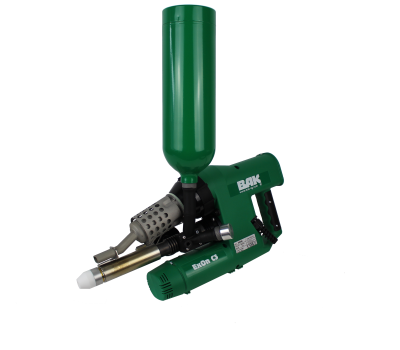

Extruder type ExOn C3
Small
light
high output

Products

The very compact and economic hand extruder with high performance.

With this Extruder with the perfect dimensions you can't go wrong! Very low noise and integrated working light.

Click on image to zoom.

- low weight

- low noise

- easy to use

- working light

- high air flow

- high output

- very short

- incl. two welding shoes



Also available as a version with granulat

    Applications

    • Welding HDPE Pipe with ExOn C3
    • PP plate welded with ExOn C3

      Technical data

      Voltage V 230
      Frequency HZ 50/60
      Power consumption W 3500
      Output kg/h 1-3,3
      Temperature range mass °C 150-350
      Air flow range l/min 300-500
      Temperature range air °C 40-450
      Noise dB 75
      Weight kg 7.3
      Welding materials   PE, PP, PVDF, PVC
      Size (l x w x h) mm 500 x 100 x 240
      CE
