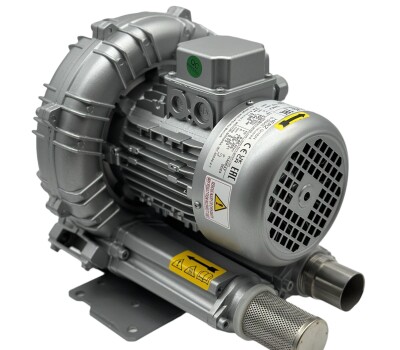

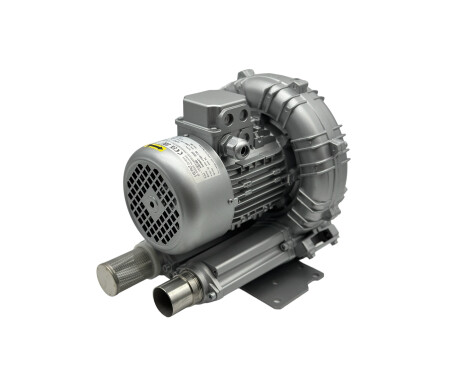

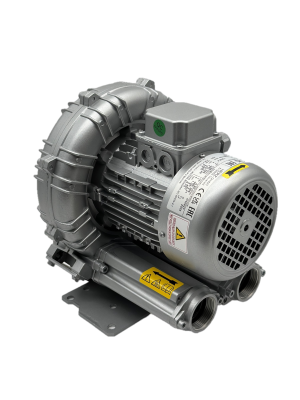

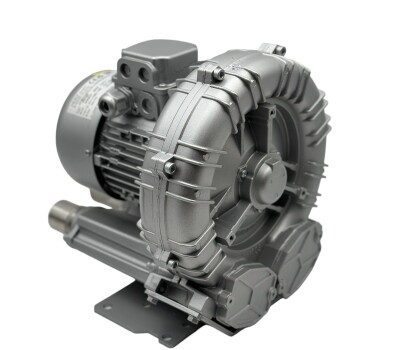

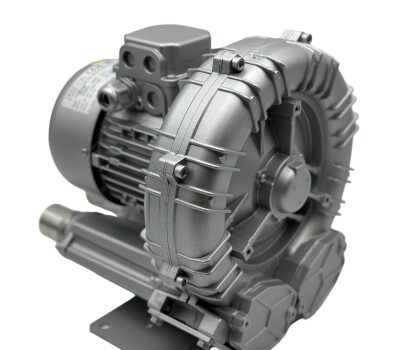

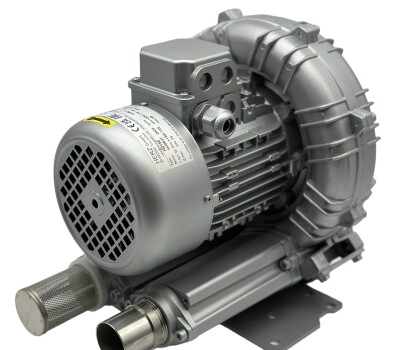

High pressure blower type HD 150
5800435 High pressure blower type HD150, 1x230V
5800424 High pressure blower type HD150, 3x230/400/480V
Technical data
| Voltage | V | 3x230-440/3x230-480 |
| Power consumption | W | 440/560 |
| Frequency | Hz | 50/60 |
| Ambient temperature | °C | -20°C to +60°C |
| Volumetric current | m3/min | 1,30/1,50 |
| Total pressure difference | Pa | 15000/20000 |
| Noise pressure level | LpA (dB) | 73/76 |
| Inlet port | mm | Ø 38 (exterior) |
| Outlet port | mm | Ø 38 (exterior) |
| Dimensions (l x w x h) | mm | 283 x 244 x 266,5 |
| Weight | kg | 12 |
| Type of protection | IP | 55 |
